Stainless Steel Flange , Stainless Steel Threaded Flange ISO9001 2008

I'm Online Chat Now

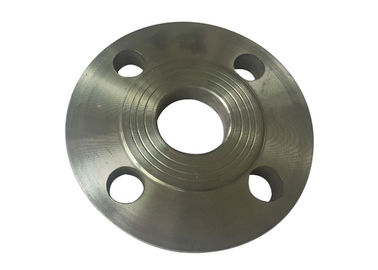

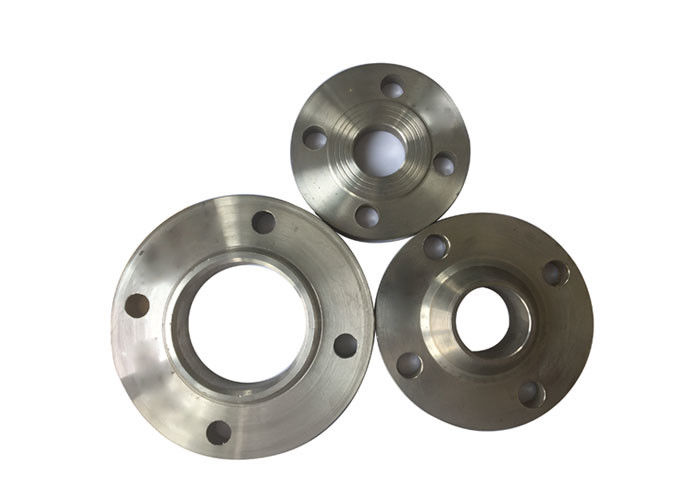

Stainless Steel Flange , Stainless Steel Threaded Flange ISO9001 2008

China Stainless Steel Flange , Stainless Steel Threaded Flange ISO9001 2008 supplier
Stainless Steel Flange , Stainless Steel Threaded Flange ISO9001 2008 supplier Stainless Steel Flange , Stainless Steel Threaded Flange ISO9001 2008 supplier Stainless Steel Flange , Stainless Steel Threaded Flange ISO9001 2008 supplier Stainless Steel Flange , Stainless Steel Threaded Flange ISO9001 2008 supplier

Large Image :  Stainless Steel Flange , Stainless Steel Threaded Flange ISO9001 2008

Product Details:

Certification: CE, ISO9001:2008
Model Number: YH-FLG

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: USD1.5 to USD6.0
Packaging Details: Neutral Carton Box and Wooden Pallet
Delivery Time: 35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 50 tons/month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 And Stainless Steel 316 Standard: ASTM A 182, ASME B 16.5
Connection Type: Neck Welding, Joint, Slip On Pressure: Class 150 To Class 2500
High Light:

ss flange

,

stainless steel threaded flange

Stainless Steel Flange , Stainless Steel Threaded Flange ISO9001 2008

What we can make:



Product Name
Stainless steel threaded flange
Material
304,304L,316,316L,321 ,310S,904L,S31803,F51and so on
Standard
GB,JIS,BS,DIN.ANSI,GOST and Non standard
ANSI Class
150,300,400,600,900,1200,1500,3000
Size
1/2'-60'
All types
Slip-on flanges, Blind flanges, Lap joint flanges, Welding neck flanges,Plate flange,Socket welding flanges and Treaded flanges
Pressure ratings
class:150 300 400 600 900 1500 and 2500, pn :6 10 16 25 40 64 and 160 ,5K-40K and so on
Sealing surface
FF ,RF, LJ, FM ,R.T.J ,R.J and so on .
Production process
raw material--cutting--heating--forging--heat treatment--maching--inspection.
Certificates
3.1B ,iso9001,CE
Marking
according to client's requirement.
Application
petroleum,chemical,power,gas,water,linepipe, heat exchanger,shipbuilding,construction,etc.
Tolerance
not less than ±8% of normal wall thickness.



Function of different types of flange:

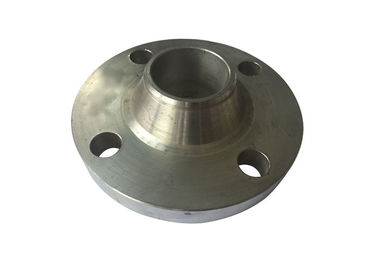

  • Weldneck flanges create a smooth weld matching the thickness and bevel of the pipe. With a diameter that matches the inside of the pipe, they work by transferring pressure from the flange to the pipe. Typically used for high-pressure applications, weldneck flanges are the most commonly used flange style.
  • Threaded Pipe flanges are unique and beneficial because there is no need to weld them to the pipe. Instead, they have an outer thread. These are most commonly used for small diameter projects with high pressure.
  • Slip-On flangesare the least expensive type and come in large or small sizes. They have a diameter slightly larger than the pipe, allowing them to easily slip directly over the pipe. After slipping on , they are then also fillet welded. The two types of slip-on flanges are the ring and hub flanges, differing by size specifications.
  • Lap Joint flanges are typically used in conjunction with either a stub end or taft. Because it is easily assembled and aligned, this type of flange should be used in low-pressure applications or those that require frequent reassembling.
  • Blind flanges, also known as blanking flanges, are used to seal off pipelines, pumps or valves to prevent flow. They are suitable for testing the pressure of liquid or gas flowing through a pipe and can sometimes be sued as an inspection cover. It is easily manageable and can be reversed to allow for expansion.
  • Socket Weld flanges are used in high pressure, smaller pipe applications. Here, the pipe is inserted into the socket and fillet welded at the top allowing for a smoother fluid and gas flow through the pipe.
  • Ring-Type Joint flanges can help in high-pressure applications to prevent leaks. These flanges have a unique groove that can be compressed onto a Slip-On, Blind or Weldneck flange. This will further allow the pipe to withstand extreme pressure and temperature.
