3/4" Stainless Steel Pipe Fitting 90 Degree Bsp / Bspt / Npt Threaded Elbow

All Products

Stainless Steel Ball Valve (36)

3 Way Ball Valve (11)

Mini Ball Valve (12)

Stainless Steel Pipe Fitting (65)

Butt Weld Pipe Fitting (9)

Flanged Ball Valve (6)

Stainless Steel Check Valve (14)

Stainless Steel Y Strainer (13)

Stainless Steel Flange (3)

Stainless Steel Gate Valve (6)

Stainless Steel Quick Connect (19)

Actuator Ball Valve (10)

I'm Online Chat Now

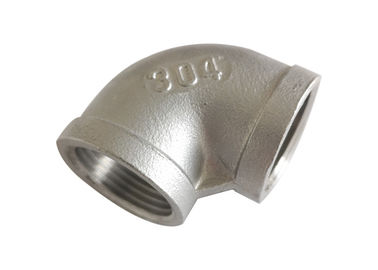

3/4" Stainless Steel Pipe Fitting 90 Degree Bsp / Bspt / Npt Threaded Elbow

Large Image : 3/4" Stainless Steel Pipe Fitting 90 Degree Bsp / Bspt / Npt Threaded Elbow

Product Details:

Certification:	ISO9001 & CE
Model Number:	YH-SE

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	USD 0.90 dollars
Packaging Details:	cartoon or wooden box
Delivery Time:	40 days
Payment Terms:	Western Union, , T/T
Supply Ability:	20 tons per month

Contact Now

Detailed Product Description

Standard:	ASTM, JIS, ANSI Etc.	Thread Type:	BSP, NPT, BSPT
Working Temperature:	25-180 Degree	Working Pressure:	2 MPa
Sturcture Type:	Elbow	Connection Type:	Thread
Highlight:	welded pipe fittings , stainless steel union

3/4" stainless steel 304 material 90 degree bsp, bspt, npt threaded elbow

Material: 304, 316 or customized.
Thread: BSP, BSPT or NPT.
3/4" Stainless Steel Pipe Fitting 90 Degree Bsp / Bspt / Npt Threaded Elbow

size	1/8"	1/4"	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"
A	19.0	19.7	23.0	28.0	32.8	35.5	44.7	48.0	57.0	68.6	75.5	86.5
B	15.0	19.8	23.0	26.0	32.0	40.0	49.0	55.0	68.7	87.0	95.0	123.0

3/4" Stainless Steel Pipe Fitting 90 Degree Bsp / Bspt / Npt Threaded Elbow

The difference between the bsp, bspt and npt thread type are as follows.

STAINLESS STEEL PIPE FITTINGS DETAILS
Material	High quality stainless steel AISI 304,316,304L,316L
Standard	ANSI,DIN,JIS,BS
Thread	NPT,BSP,BSPT,DIN2999
Size	1/4",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6".
Model	Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets, Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges, Side Outlet Tees, Side Outlet Elbows, etc.
Related products	1. Carbon steel nipples and sockets	2. Flanges
	3. Carbon steel butt-welding fittings	4. Pipes
	5. High-pressure fittings	6. Valves
	7. P.T.F.E .thread seal tape	8. Brass fittings
	9. Ductile iron pipe fittings	10. Copper fittings
	11. Grooved fittings	12. Sanitary fittings.
Technics	Casting,Welding
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI, ISO9001
Applications	Suitable for Pipe lines connect of water, steam, air, gas, oil and so on.
Buyer’s drawings or designs are available.
Package	1. Cartons without pallets.
	2. Cartons with pallets.
	Or as buyer’s requirements.
Delivery detail
According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.
