1/4 inch Stainless steel camlock coupling Type E Specification

China 1/4 inch Stainless steel camlock coupling  Type E Specification supplier
1/4 inch Stainless steel camlock coupling  Type E Specification supplier 1/4 inch Stainless steel camlock coupling  Type E Specification supplier

Large Image :  1/4 inch Stainless steel camlock coupling Type E Specification

Product Details:

Place of Origin: China
Brand Name: Yuanheng
Certification: CE And ISO
Model Number: YH-CP-01

Payment & Shipping Terms:

Minimum Order Quantity: 5 PCS
Packaging Details: Polywood box/ Pallet
Delivery Time: 20-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Ton/ Month
Contact Now
Detailed Product Description
Body Material: CF8/CF8M Samples: Free Samples Are Available
Certificate: ISO And CE Connection: Female Thread
Connection Type: Flange,threaded,socket OEM Service: Available
Port Size: 1/4"-4" Working Temperature: —20℃ ~ 200℃
Pressure Class: PN1.6-PN7MPa

1/4 inch Stainless steel camlock coupling Type E Specification





1. Description:



1/4 Inch stianless steel camlock coupling type E has barbs on body, while the other end is Camlock design. This type of camlock coupling is mainly used to connect the hoses.Because the barbs can make the hose not remove ealiy. The camplock end can easily be connected with the camlock cap or the camlock type B.





2. Applications:



Water hose
Fire fighting equipments
Quick repair pipe line projects





3. Types of Pictures:



 Camlock Type A;   Camlock Type B;   Camlock Type C;  Camlock Type D

 Camlock Type E;   Camlock Type F;    Dust  Cap;            DP





4. Feature Advantage:



Safety is provided by a patented locking mechanism, built into the coupling arms. Such a design
ensures that the arms are locked automatically when closed. Opening is a simple matter of tugging the finger rings.
SAFLOK couplings are interchangeable with other CAMLOCK couplings manufactured according to MIL-C-27487standard.





5. Product Show

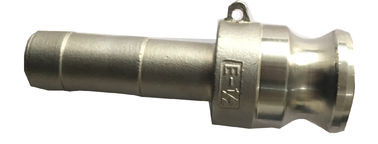

Type E



1/4 inch Stainless steel camlock coupling  Type E Specification





SIZE L H D D1 d d1
1/2" 97 40 32 21.5 20 15
3/4" 97 40 32 21.5 20 15
1” 101 40 36.5 25 27 22
1-1/4” 108 47 45.5 30.5 34 28
1-1/2” 117 51 53.3 38 40 33
2” 127 53 63 47 53 46
2-1/2” 137 55 75.5 60 64 57
3” 150 60 91.5 76 77 70
4” 162 60 119.5 103 104 96
