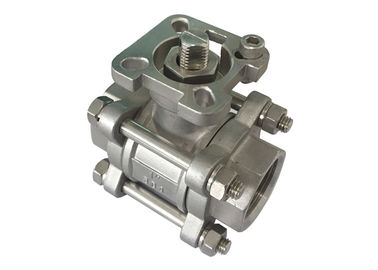

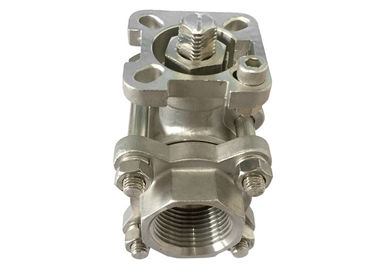

Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4" inch with actuator mounting pad

China Npt / Bsp / Bspt  Stainless Steel Ball Valve 3/4" inch with actuator mounting pad supplier
Npt / Bsp / Bspt  Stainless Steel Ball Valve 3/4" inch with actuator mounting pad supplier Npt / Bsp / Bspt  Stainless Steel Ball Valve 3/4" inch with actuator mounting pad supplier

Large Image :  Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4" inch with actuator mounting pad

Product Details:

Place of Origin: Cangzhou, Hebei, China
Brand Name: yuanheng
Certification: ISO9001 & CE
Model Number: 3PBVWM

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: USD 10.22-10.89 dollars
Packaging Details: cartoon or wooden box
Delivery Time: 40 days
Payment Terms: Western Union, , T/T
Supply Ability: 20 tons per month
Contact Now
Detailed Product Description
Temperature: -20-250 Degree Material: Stainless Steel
Handle Color: Blue/Red Working Pressure: 6.9 Mpa
Thread Type: NPT, BSP, BSPT Connection Type: Threaded

Npt / Bsp / Bspt Stainless Steel Ball Valve 3/4" inch with actuator mounting pad

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT
8 Bore type Full bore



Material and specification

Item ITEM Material
1 STEM PACKING PTFE
2 BODY SEAL PTFE
3 BALL SEAT PTFE
4 BALL CF8M
5 CAP CF8M
6

BOLT

304
7 NUT 304
8 THRUST WAHSER 304
9 STEM SEAL PTFE
10 YOKE CF8M
11 STEM 304
12 GLAND PACKING 304


Npt / Bsp / Bspt  Stainless Steel Ball Valve 3/4" inch with actuator mounting pad



size 1/4" 3/8" 1/2" 3/4" 1"
D 12.5 12.5 15 20 25
L 64 64 72 80 85
H 68.4 68.4 72 78 90.3
W 135 135 135 135 152
H1 38.4 38.4 42 48 55
H 9 9 9 9 11





size 1-1/4" 1-1/2" 2" 2-1/2" 3"
D 32 38 50 65 76
L 105 113 132 170 186
H 95.3 107 122 155 164
W 152 188 188 233 233
H1 60 70 85 109 118
H 11 15 15 20 20



Npt / Bsp / Bspt  Stainless Steel Ball Valve 3/4" inch with actuator mounting pad

Npt / Bsp / Bspt  Stainless Steel Ball Valve 3/4" inch with actuator mounting pad





The differences between bspp, bspt, npt threads.



Npt / Bsp / Bspt  Stainless Steel Ball Valve 3/4" inch with actuator mounting pad

Npt / Bsp / Bspt  Stainless Steel Ball Valve 3/4" inch with actuator mounting pad





Product Name

3PC BSPT High Mounting Pad CF8M CF8 Screwed Ball Valve

Material
stainless steel 304/316/WCB
Size
1/4" -4"
Standard
DIN GB ISO JIS ANSI
Pressure
1000WOG
Suitable medium
water, oil, air and some corrosive liquid etc.(WOG)
Temperature Range
-20 - 180 degree C
Sealing
RPTFE,PTFE,PPL,etc.
Connection
threaded, flange ,welded ,clamp.
Certification
CE, ISO,DIN ,API,etc. Our factory has been inspected by SGS and TUV
Guarantee Period
18 months
Casting
Investment
MOQ
100 PCS/size
Operated
Manual
Brand name
WOD,SJFM, we accept customers' brand
Capacity to produce
100, 000.00 PCS/week
Terms of payment
30% TT deposit, the balance is paid before shipping the goods
Delivery time
30-45 days after received the deposit
Package detail
inner CTN, outside ply-wooden case
Sample
Customers' drawing and samples are accepted.
