Light type 1" inch three way 1000 WOG ball valve 304 stainless steel npt threaded

Certification
Good quality 3 Way Ball Valve for sales
Good quality 3 Way Ball Valve for sales
I'm Online Chat Now

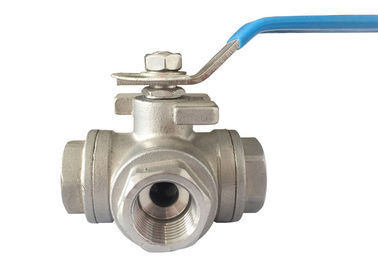

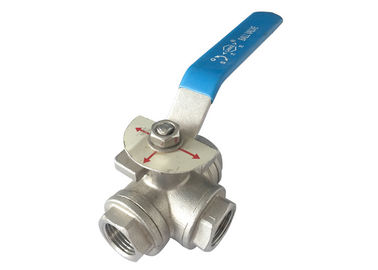

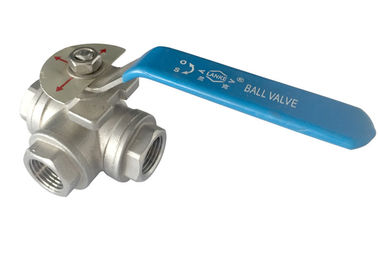

Light type 1" inch three way 1000 WOG ball valve 304 stainless steel npt threaded

China Light type 1" inch three way 1000 WOG  ball valve 304 stainless steel npt threaded supplier
Light type 1" inch three way 1000 WOG  ball valve 304 stainless steel npt threaded supplier Light type 1" inch three way 1000 WOG  ball valve 304 stainless steel npt threaded supplier Light type 1" inch three way 1000 WOG  ball valve 304 stainless steel npt threaded supplier

Large Image :  Light type 1" inch three way 1000 WOG ball valve 304 stainless steel npt threaded

Product Details:

Place of Origin: Cangzhou, Hebei, China
Brand Name: yuanheng
Certification: ISO9001 & CE
Model Number: 3 WLBV

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: USD 22.55-24.23 dollars
Packaging Details: cartoon or wooden box
Delivery Time: 40 days
Payment Terms: Western Union, , T/T
Supply Ability: 20 tons per month
Contact Now
Detailed Product Description
Thread Type: Npt, Bspp, Bspt Working Pressure: 6.9 Mpa
Certificate: CE&ISO 9001 Connection Type: Threaded
Standard: ASTM, JIS, ANSI, ETC. Body Material: Stainless Steel 316/304
Handle Color: Blue/Red

Light type 1" inch three way 1000 WOG ball valve 304 stainless steel npt threaded

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT
8 Bore type

Reduced bore



Material and specification

Item ITEM Material
1 BODY CF8M
2 GLAND NUT 304
3 FLOW INDICATION PLATE ALUMINUM
4 STEM NUT 304
5 LOCKING 304
6

HANDLE

304
7 PLASTIC COVER PLASTIC
8 STEM 304
9 STEM PACKING PTFE
10 STEM SEAL PTFE
11 CAP CF8M
12 BODY SEAL PTFE
13 BALL CF8M
14 BLIND CAP CF8M
15 BLIND CAP  PLASTIC


Light type 1" inch three way 1000 WOG  ball valve 304 stainless steel npt threaded




SIZE D L C H D1 M Φ 1 A S U
1/2" 12.7 75 9 68 116 42 6 10 33 37.5
3/4" 16 85 9 73 116 42 6 10 39.5 42.5
1" 20 100 11 83 152 50 7 12 50 52
1-1/4" 25 115 11 89 152 50 7 12 50.5 57.5
1-1/2" 32 124 14 97 187 70 9 16 57 62
2" 38 147 14 106 187 70 9 16 65 75

Light type 1" inch three way 1000 WOG  ball valve 304 stainless steel npt threaded

Light type 1" inch three way 1000 WOG  ball valve 304 stainless steel npt threaded





3 way stainless steel ball valve's advantages



(1)Stainless steel ball valve switch quickly and conveniently Since only the ball valve factory, typically rotates 90. Completes the full open to close action, it is easy to realize rapid opening and closing.



(2)the stainless steel ball valve sealing At present, most of the stainless steel ball valve seat is made of elastic material such as ptfe, the gold and vouchers of seal metal materials, commonly referred to as soft seal.In general, soft seal sealing easy to guarantee, and the machining accuracy and surface roughness on the surface of the sealing requirement is not high.



(3)stainless steel ball valve long service life Because ptfe (FTF or F, 4) have good self-lubrication, and sphere of friction and wear small. And because the ball processing technology improvements, reduce coarse award degrees, so as to improve the service life of the stainless steel ball valve, it is reported that the United States W - K - M in testing the indoor life test was carried out on the stainless steel ball valve, switch times 100000 times.
