Mini Ball Valve Chrome Plated Pn63 Male Thread Stainless Steel Material

I'm Online Chat Now

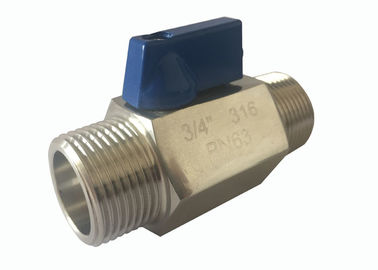

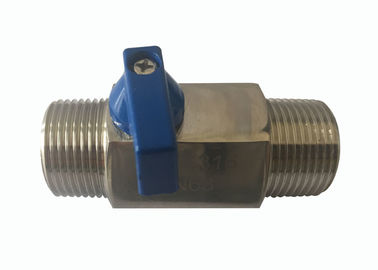

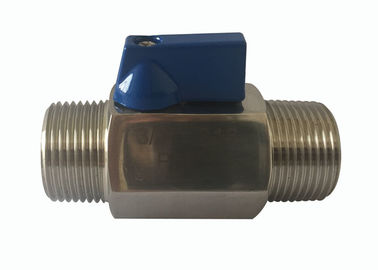

Mini Ball Valve Chrome Plated Pn63 Male Thread Stainless Steel Material

China Mini Ball Valve Chrome Plated Pn63 Male Thread Stainless Steel Material supplier
Mini Ball Valve Chrome Plated Pn63 Male Thread Stainless Steel Material supplier Mini Ball Valve Chrome Plated Pn63 Male Thread Stainless Steel Material supplier Mini Ball Valve Chrome Plated Pn63 Male Thread Stainless Steel Material supplier

Large Image :  Mini Ball Valve Chrome Plated Pn63 Male Thread Stainless Steel Material

Product Details:

Certification: CE, ISO9001:2008
Model Number: YH-BM-MM

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: USD3.7-USD7.8
Packaging Details: Neutral Carton Box
Delivery Time: 35 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, Paypal
Supply Ability: 50 tons/month
Contact Now
Detailed Product Description
Material: Stainless Steel 304/ Stainless Steel 316 Surface: Chrome Plated
Connection: Male-Male Thread Thread Type: BSP, BSPT, NPT, DIN2999, G Thread
Application Medium: Water, Oil, Gas Pressure: PN63
High Light:

micro ball valve

,

fuel ball valve

Mini Ball Valve Chrome Plated Pn63 Male Thread Stainless Steel Material





Product Descriptions



Stainless steel mini ball valves are constructed of an alloy of iron and chromium. They are more malleable than carbon steel, and are very resistant to rust and corrosion.

Double seal system allows flow can go in either direction Suitable for full range of liquids and gas

Temperature range: -20℃ to 200℃, Fast 1/4 turn open or closed operation

Each valve individually tested for maximum safety Blow-out Proof Stem

BSP,BSPT,NPT, G thread  connections (FxF, FxM and MxM) Heavy duty Zinc Alloy handles



Specification Details



Mini Ball Valve Chrome Plated Pn63 Male Thread Stainless Steel Material

SIZE 1/4" 3/8" 1/2" 3/4" 1"
D 7 7 9.2 12.5 15
L 42 42 46 54 65
H 26.5 26.5 28.3 31.5 34
W 22.8 22.8 22.8 22.8 22.8



Designation - Material

Body - SS 316 (CF8M)

Ball - SS 316 (CF8M)

Bonnet - SS 316 (CF8M)

Ball Seat - RPTFE

Valve Stem - SS 304/ SS 316

Screw - SS 304

Lever - Aluminum Alloy

O-Ring - NBR/Viton
