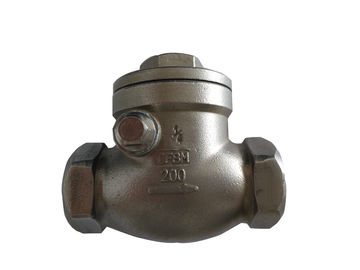

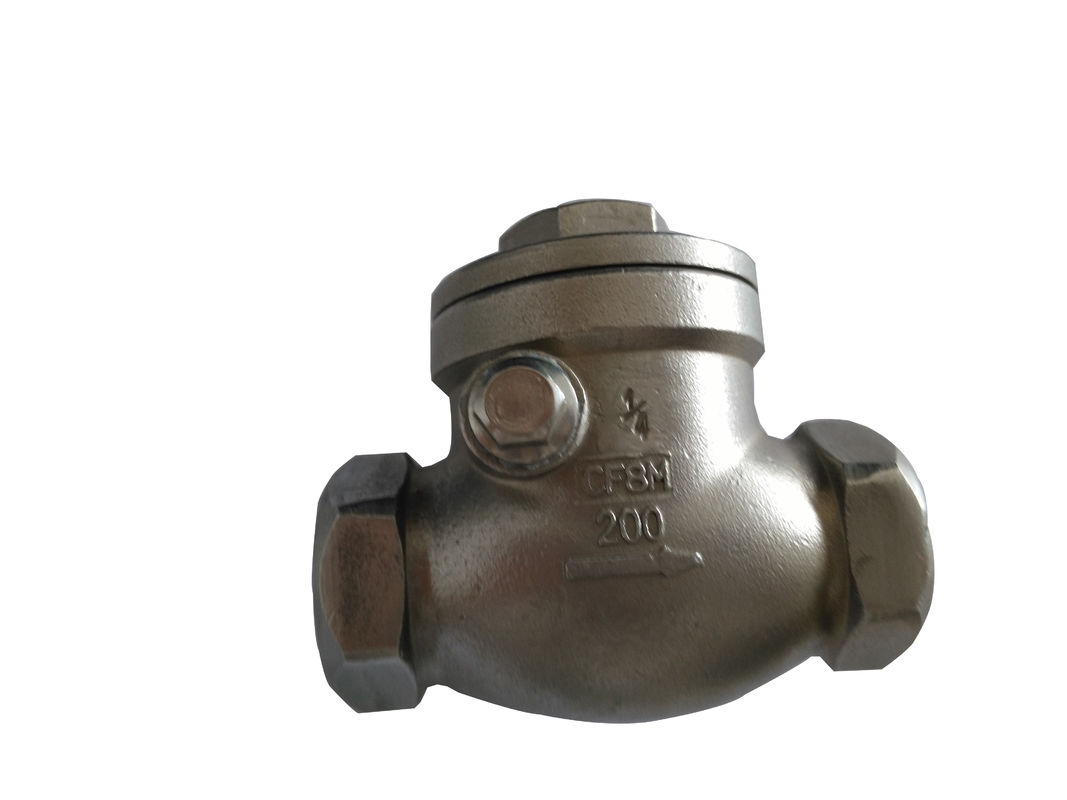

1/2" - 4" Casting Stainless Steel Check Valve NPT Threaded PN40

Large Image : 1/2" - 4" Casting Stainless Steel Check Valve NPT Threaded PN40

Product Details:

Certification:	CE& ISO
Model Number:	YH-01-02

Payment & Shipping Terms:

Minimum Order Quantity:	5 PCS
Packaging Details:	Standard Carton Box or Wooden box
Delivery Time:	25-35 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 Ton/ Month

Contact Now

Detailed Product Description

Body Material:	CF8/CF8M	Sealing:	PTFE
Port Size:	1/4"-4"	Thread Type:	NPT/BSPT/ISO/DIN Thread
MOQ:	5 PCS	OEM Service:	Available
Operation Type:	Manual Lever/ Gear	Connection Type:	Flange,threaded,socket
Package:	Polywood Box/ Pallet
High Light:	flow check valve , ss check valve

1/2" - 4" Casting Stainless Steel Check Valve NPT Threaded PN40

1 Applications:

For general chemical and industrial services

Working Pressure: 6.3 MPa, 1000PSI

Applicable Medium: Water, Oil, Gas

Body Material: CF8, CF8M, CF3M

Design: ANSI B 16.34

Testing: API598

2 Specifications:

ITEM	DESIGNATION	WATERIAL
1	BODY	CF8M
2	BONNET	CF8
3	HANGE PIN	CF8/CF8M
4	PLUG	PTFE
5	PIN CAP	CF8
6	THRUST WASHER	PTFE

SIZE	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
L	15	20	25	32	40	50
D	65	80	90	105	120	140
H	43	53	60	60	75	79

1/2" - 4" Casting Stainless Steel Check Valve NPT Threaded PN40

Tag:

flow check valve,

ss check valve
