ISO9001 2008 3 Way Stainless Steel Ball Valve PN63 Pressure For Water / Oil

ISO9001 2008 3 Way Stainless Steel Ball Valve PN63 Pressure For Water / Oil

Product Description

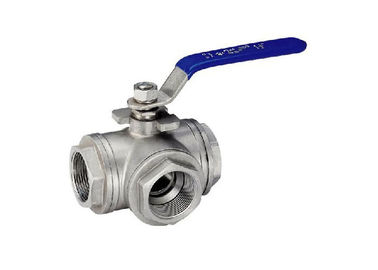

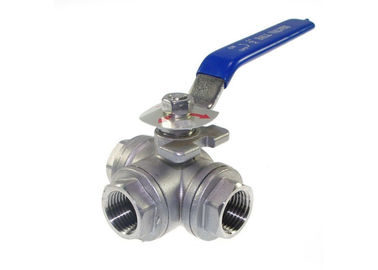

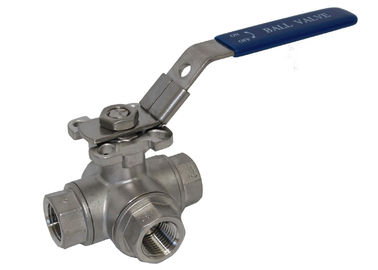

This side entry 3 way ball valve offers diverting and mixing flow patterns and often eliminates the need for two valves. The full port design is easily automated and is available with various seat materials. The bolt on thread make for easy seat changes as necessary to accommodate your service. Easily automated!

When ports “A” and “B” are the inlets, and port “C” is the out-let, the valve becomes a mixing valve. With minor variations in position 2 the percentage of components at “A” and “B” can be varied to the outlet “C”. This has been successfully applied to hydronic systems.

It may not be possible to isolate the ports from one another in any position. If the valve is in position 1, and the pressure at port “B” is significantly higher than port “A”, the ball may be forced off the seat allowing mixing from all ports. Whether or not this is a problem depends on the application and its sensitivity to unwanted mixing.



Flow Control Pattern





Specification







Parameters



SIZE	D	L	C	H	D1	M	φ1	A	S	U
1/2"	12.7	75	9	68	116	42	6	10	33	37.5
3/4"	16	85	9	73	116	42	6	10	39.5	42.5
1"	20	100	11	83	152	42	7	12	50	52
1 1/4"	25	115	11	89	152	50	7	12	50.5	57.5
1-1/2"	32	124	14	97	187	50	9	16	57	62
2"	38	147	14	106	187	70	9	16	65	75
