DIN2828 Standard Stainless steel 304 Camlock and Groove Coupling fittings

Large Image : DIN2828 Standard Stainless steel 304 Camlock and Groove Coupling fittings

Product Details:

Certification:	CE, ISO9001:2008
Model Number:	CAMLOCK-C

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD 2.5 to USD 41
Packaging Details:	Neutral Carton Box
Delivery Time:	40 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Standard:	DIN2828	Material:	Stainless Steel 304 And Stainless Steel 316
Head Type:	Round	Type:	A/B/C/D/E/F/DC/DP
Size Range:	1/2" To 6"
High Light:	camlock quick coupling , stainless steel camlock coupling

DIN2828 Standard Stainless steel 304 Camlock and Groove Coupling Fittings

1.Product Description

Camlocks also called cam and groove coupling, a kind of hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different liguids and a variety of sizes to accommodate hose or piping diameter.

Couplings produced to DIN 2828 are interchangeable with those produced to the original MIL-C-27487 standard, but differ in terms of hose tail design, thread, part number etc. A flat thread seal has been added to the female threaded parts, and a smooth hose shank complying with DIN 2817 has been added for assembly with RK safety clamps complying with DIN 2817.

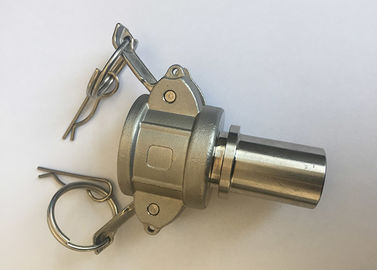

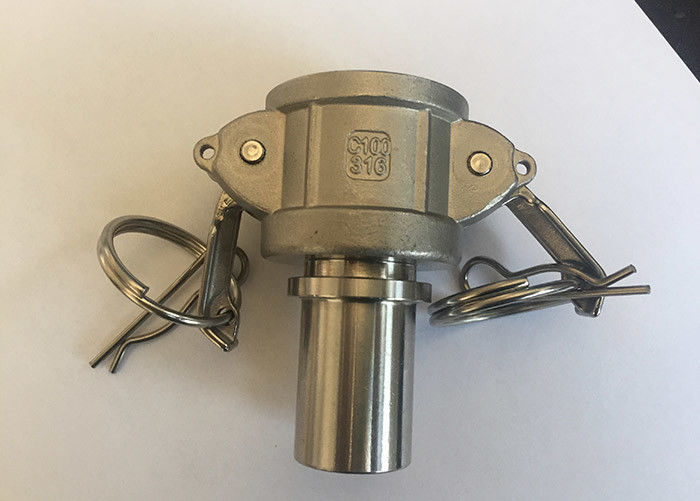

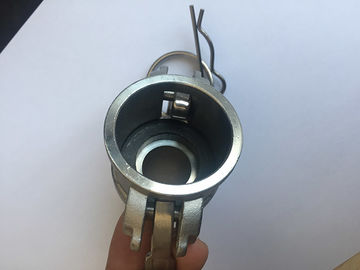

2.Product Show

3. Specifications

DIN2828 Standard Stainless steel 304 Camlock and Groove Coupling fittings

4“	100	100	103	258	160	134	106	162	95.5
3"	80	75	77	230	130	104	91	146.5	70
2-1/2"	65	63	65	205	109	87	82	134	57
2"	50	50	52.5	191	95	74	73	125	46.5
1-1/2"	40	38	39	182	85	64	71	116	33.5
1-1/4"	32	32	34	175	79	56	60	105	28
1"	25	24	26	120	60	46	61	97.5	20
3/4"	20	18.5	19.7	112	53	41	55	85	15
1/2"	15	18.5	19.7	112	53	41	55	85	15
SIZE	mm	d	D	A	B	C	L	H	E
