Cf8M Ball Valve , 3 PC Socket Weld Ball Valve With Water Resistance
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Body Material: | CF8/CF8M/ CF3M | Samples: | Free Samples Are Available |
|---|---|---|---|
| Port Size: | 1/4"-4" | Thread Type: | NPT/BSPT/ISO/DIN Thread |
| MOQ: | 5 PCS | OEM Service: | Available |
| Operation Type: | Manual Lever/ Gear | Connection Type: | Flange,threaded,socket |
| Package: | Polywood Box/ Pallet | ||
| High Light: | butt weld ball valve,ss ball valve |
||
Cf8M Ball Valve , 3 PC Socket Weld Ball Valve With Water Resistance
1. Description:
This is a high quality, medium weight, stainless (304SS) 3-piece body with a non-restricting "full port" ball and 1/2" NPT female threads on both ends. 3 piece valves as they come apart much easier than 2pc. Just loosen the four bolts and the whole unit comes apart. The end block can even remain attached to your plumbing or vessel. Another benefit of the 3 piece valve is when tightening into a welded port, the orientation of the valve may end up upside down when the threads fully mesh.
Note when comparing pricing that these are absolutely the smoothest operating valves that we've seen to date in the "under $50 price point". So many companies are offering cheaper and cheaper valves to attract customers but we dare anyone to compare the quality of these valves against the competition. In some cases the handle is so hard to turn you think you may be tweaking the metal on your brew pot wall.
2. Applications:
For general chemical and industrial services
Working Pressure: 6.3 MPa, 1000PSI
Applicable Medium: Water, Oil, Gas
Body Material: CF8, CF8M, CF3M
Options: Locking device
Design for in-line reparable and simple maintenance
Clamp end ball valve can be installed on the pipes quickly.
3. Specifications:
| ITEM | DESIGNATION | MATERIAL |
| 1 | HANDLE COVER | PLASTIC |
| 2 | HANDLE | SS304 |
| 3 | LOCK DEVICE | SS304 |
| 4 | STEM | SS 304 |
| 5 |
SPRING WASHER |
SS 304 |
| 6 | NUT | SS 304 |
| 7 | GLAND NUT | SS304 |
| 8 | STEM PACKING | PTFE |
| 9 | THRUST WASHER | PTFE |
| 10 | CAP | CF8M |
| 11 | BOLT | SS 304 |
| 12 | NUT | SS 304 |
| 13 | SPRING WASHER | SS 304 |
| 14 | BALL SEAT | R-PTFE |
| 15 | BALL | SS 316 |
4. Drawing

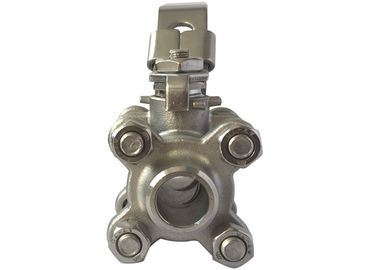

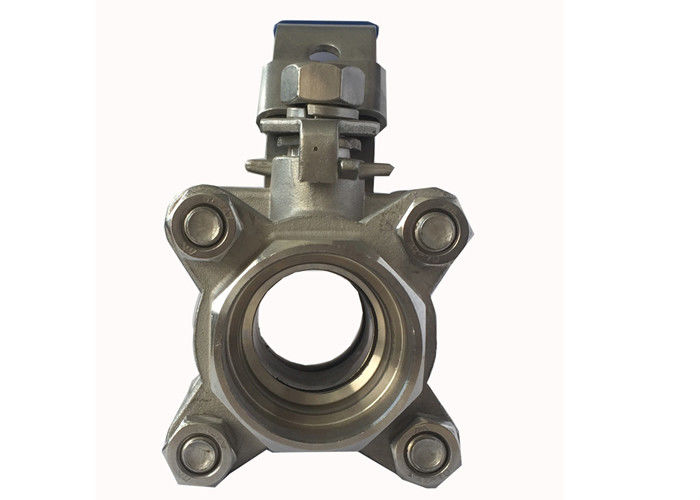

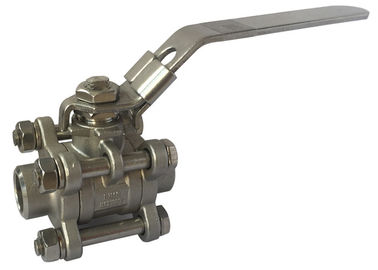

5. Product Show
