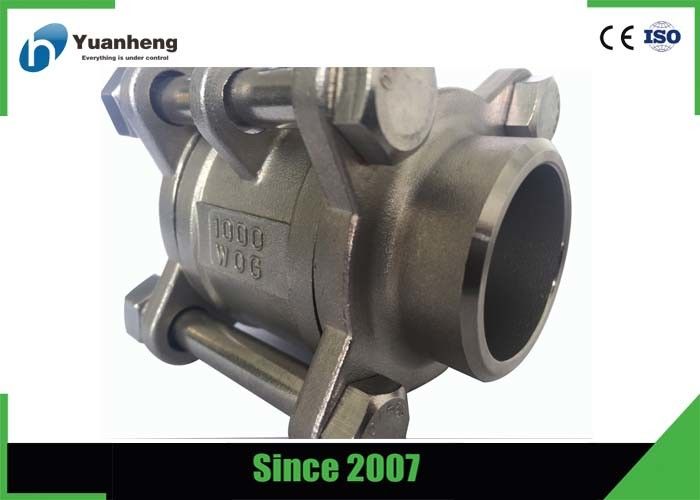

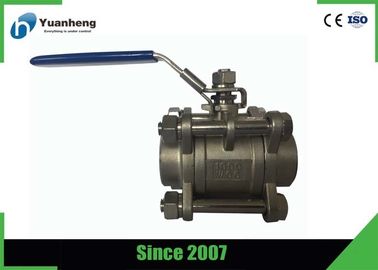

Butt Weld End 1000PSI 3PC Ball Valve Stainless Steel 316 Material

Large Image : Butt Weld End 1000PSI 3PC Ball Valve Stainless Steel 316 Material

Product Details:

Certification:	CE, ISO9001:2008
Model Number:	YH-B3PC-BW

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	USD3.5 to USD175/piece
Packaging Details:	28cmx20cmx19cm Carton Box
Delivery Time:	35 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	50 tons/month

Contact Now

Detailed Product Description

Connection Type:	Butt Welding	Body Design:	3 Parts Body
Port Type:	Full Bore	Material:	Stainless Steel 304 And Stainless Steel 316
Operation Type:	Manual Lever	Working Pressure:	1000psi/6.3Mpa
Application:	Water,Oil, Gas,Steam
High Light:	butt weld ball valve , ss ball valve

Butt Weld End 1000PSI 3PC Ball Valve Stainless Steel 316 Material

Product Description

3PC Ball Valve is full bore design with straight through flow. 3 piece body allows easy maintenance service without removing end cap from pipe line. The body is made of investment casting and the valve is featured with blow-out-proof stem. Ball valve seat material is Reinforced Teflon (R-PTFE) for excellent chemical resistance and improved cycle life. Suitable for isolation applications in the Food Industries, Palm Oil and Refinery, Rubber Glove, Power, Oil and Gas, Petrochemical Industries and Genral Industrial Plants.

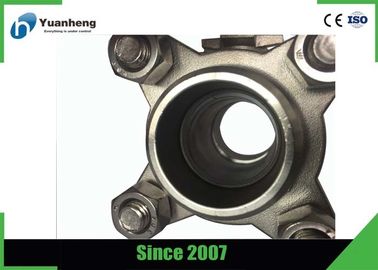

Butt welding connection end supplies operation conveninence when the area is limited. Also, the welding type can make the connection closely without leaking.

Features:

Swing-out design allows in-line maintenance service
Full bore ball valve
Investment casting body
Blow-out-proof stem
Working pressure up to 1000psi W.O.G
Working Temparature up to 180

Specification

SIZE	1/4"	3/8"	1/2"	3/4"	1"	1 1/4"	1 1/2"	2"	2 1/2"	3"	4"
D	12.5	12.5	15	20	25	32	38	50	65	76	94
L	72	72	72	80	85	105	113	134	170	186	220
H	48	48	50	52	65	70	85.5	93	116	125	180
W	105	105	105	126	144	144	189	189	224	224	251
