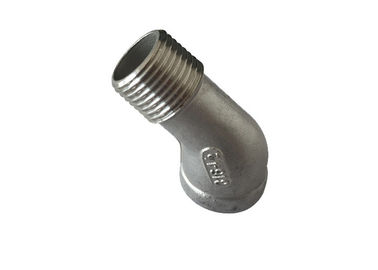

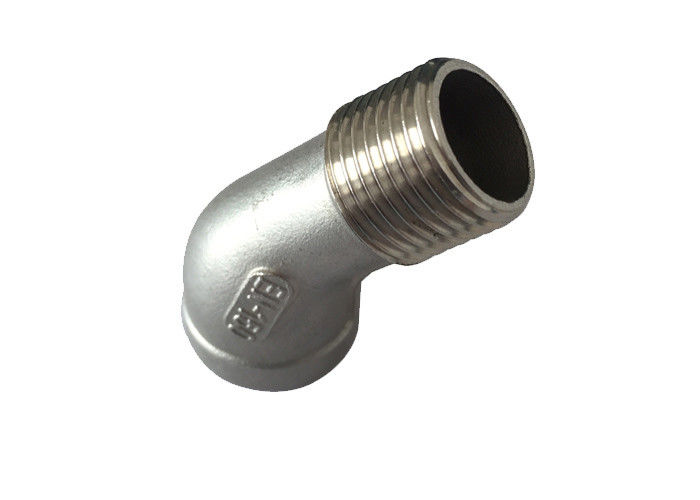

bsp, bpt threaded stainless steel astm, jis, ansi standard 45 degree street elbow
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Connection: | Thread | Thread Type: | BSP, NPT, BSPT |
|---|---|---|---|
| Working Temperature: | 25-180 Degree | Working Pressure: | 2 MPa |
| Sturcture Type: | 45 Degree Street Elbow | Standard: | ASTM, JIS, ANSI Etc. |
| High Light: | threaded pipe fittings,stainless steel union |
||
bsp, bpt threaded stainless steel astm, jis, ansi standard 45 degree street elbow
Material: 304, 316 or customized.
Thread: BSP, BSPT or NPT.
Tolerance: ±1 mm.
| size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| A45° | 16 | 17 | 19 | 21 | 35 | 29 | 34 | 37 | 42 | 49 | 52 | 65 |
| B45° | 21 | 23 | 27 | 31 | 36 | 42 | 49 | 51 |
59 |
71 | 72 | 96 |
| D | 15.5 | 18 | 22 | 28 | 34 | 43 | 51 | 59 | 72 | 90 | 100 | 131 |
|
|
The difference between the bsp, bspt and npt thread type are as follows.
|
|
| Product Name: | CF8 NPT thread round 45 deg street elbow |
| Material | ASTM- A351-CF8M (SS316) , CF8 (SS304) |
| Type | street round shape 45 deg |
| Quality | 100% leakage tested |
| Size | 1/8" - - 4" |
| Head Shape: | Round |
| Shape: | Street |
| End Connetion: | Female / male Threaded |
| Thread Standard: | BSPP, BSPT, NPT, DIN2999, ISO228 etc. |
| Surface Treatment: | No |
| Working Pressure: | Class 150 |
| Suitable Medium: | Water, Oil, Gas, Nitric Acid, Acetic Acid |
| Applicable Temperature: | -20 -- 180 Degree C |
| Certificate: | CE; ISO9001 |
| Package | Inner Carton outside Ply-woodencase |
Competitive Advantages:
1.OEM/ODM is applicable
2.Offer free sample for testing
3.100% test before delivery
4.Our ball valve is guaranteed within 18 months shell life after delivery.
5.We are manufacturer, not trading company, so our price is very competitive & reasonable to win the market.
6.We pay much attention to technology renovation, process improvement, structure optimization and quality improvement at our ball valve.
7.We have excellent after-sales service system, providing timely and optimal service, which help you to win the market.
8.As a manufacturer, we have the absolutely advantage to control the quality & delivery.
9.We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.
