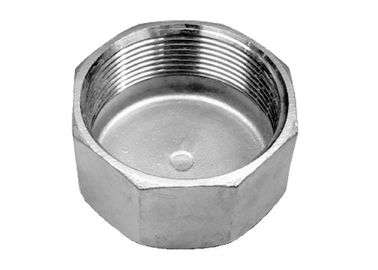

304 Stainless Steel Octagon Cap Npt Bsp Bspt Threaded 1" Inch Ansi Standard
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Thread Type: | BSP, NPT, BSPT | Working Temperature: | 25-220 Degree |
|---|---|---|---|
| Working Pressure: | 2 MPa | Certificates: | CE |
| Material: | 304, 316, CF8M, 1.4408 Etc. | Standard: | ASTM, ANSI, JIS |
| High Light: | welded pipe fittings,threaded pipe fittings |
||
304 stainless steel npt, bsp, bspt threaded 1" inch astm, jis, ansi standard octagon cap
Material: 304, 316 or customized.
Thread: BSP, BSPT or NPT.
| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| H | 14.0 | 17.0 | 20.5 | 25.0 | 30.0 | 37.0 | 46.0 | 53.0 | 64.0 | 82.0 | 96.0 | 122.0 |
| S | 15.0 | 15.0 | 18.0 | 20.0 | 21.0 | 25.0 | 31.0 | 33.0 | 36.0 | 43.0 | 45.0 | 48.0 |
|
|
The difference between the bsp, bspt and npt thread type are as follows.
|
|
| Material | High quality stainless steel 304,316,316L / CF8, CF8M, CF3M / 1.4308, 1.4408, 1.4404 |
| Size | 1/8”,1/4”,3/8”,1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”,3”,4”,5”,6” |
| Thread | ANSI B 1.20.1(NPT), BS21(BSP), DIN259/2999, ISO7/1, ISO228-1, JISB0203 |
| Nominal pressure | 150lbs |
| Certificate | ISO9001 & CE |
| Function | Connect the pipeline |
| Application | They are widely used as linkages of pipes for the transportation of water ,oil, gas and every kind of corrosive suitable for stainless steel. |
| Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
| Packing | Be packed in standard export polybag, carton and fumigation-free pallet |
| Delivery time | Within 3-45 days after receipt of advance payment. |
| Trade term | FOB/ CIF/ EXW Tianjin Port |
| Payment term | 1)30% T/T down payment, the balance before delivery. |
| 2)Paypal | |
| 3)D/P | |
| Pipe fitting type |
90 Degree Elbow, 45 Degree Elbow, 90 Degree street Elbow, Tee, Reducing Tee, Cross, FF/FM/MM Union, Barrel Nipple, Thread Nipple, Welding Nipple, Half Coupling, Full Coupling, Reducing Coupling, Socket Banded,Hose Barb Fitting, Hexagon Nipple, Hexagon Bushing, Hexagon Cap, Round Cap, Y-Strainer |
| Note | We can change the design as per the client’s requirement. |
| We can produce stainless steel screwed pipe fittings, ball valves, check valve, gate valve, globe valve and camlock etc.pipeline equipments for your choice. |
