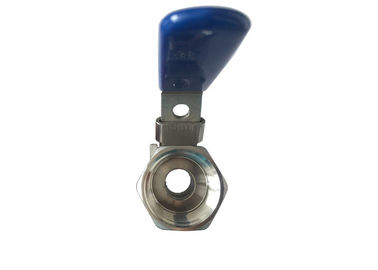

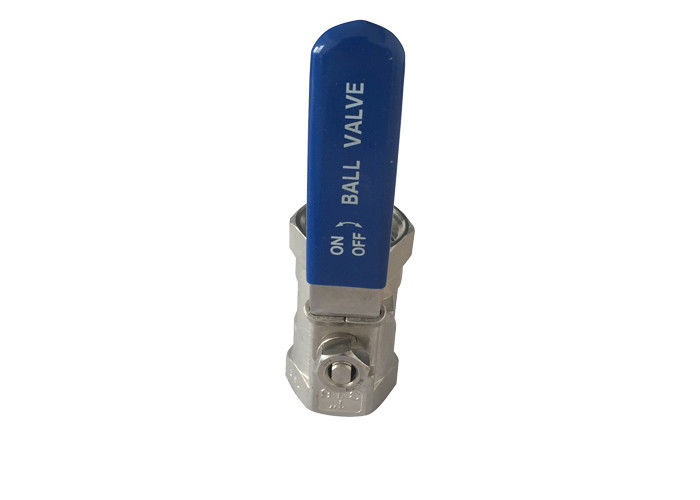

2 inch 304 Stainless Steel Ball Valve Npt Bsp Threaded 6.9 MPA

China 2 inch 304 Stainless Steel Ball Valve Npt Bsp Threaded 6.9 MPA supplier
2 inch 304 Stainless Steel Ball Valve Npt Bsp Threaded 6.9 MPA supplier 2 inch 304 Stainless Steel Ball Valve Npt Bsp Threaded 6.9 MPA supplier

Large Image :  2 inch 304 Stainless Steel Ball Valve Npt Bsp Threaded 6.9 MPA

Product Details:

Certification: ISO9001 & CE
Model Number: 1PBV

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: USD 14.02- 14.28 dollars
Packaging Details: cartoon or wooden box
Delivery Time: 40 days
Payment Terms: Western Union, , T/T
Supply Ability: 20 tons per month
Contact Now
Detailed Product Description
Body Material: Stainless Steel 316/304 Media: Water Oil Gas
Handle Color: Blue/Red Working Pressure: 1.0-1.6Mpa (10-25bar)
Certificate: CE Connection Type: Thread
High Light:

metal ball valve

,

butt weld ball valve

2 inch 304 Stainless Steel Ball Valve Npt Bsp Threaded 6.9 MPA

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT
8 Bore type Reduced



Material and specification

Item ITEM Material
1 PLASTIC COVER PLASTIC
2 HANDLE 304
3 LOCKING 304
4 STEM NUT 304
5 SPRING WASHER 304
6

STEM

 304/316
7 PAKCING RING PTFE
8 STEM PACKING PTFE
9 CAP CF8/CF8M
10 BODY CF8/CF8M
11 BALL SEAT (A) R-PTFE
12 BALL CF8M
13 BALL SEAT (B) R-PTFE


2 inch 304 Stainless Steel Ball Valve Npt Bsp Threaded 6.9 MPA

SIZE 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3"
D 5 7 9.2 12.5 15 20 25 32 38 50
L 39 44 57 59 71 78 83 100 128 153
H 33 35 40 44 51 57 64 70 70 77
W 68.5 90 98 98 111 111 139 139 189 189



2 inch 304 Stainless Steel Ball Valve Npt Bsp Threaded 6.9 MPA

2 inch 304 Stainless Steel Ball Valve Npt Bsp Threaded 6.9 MPA
