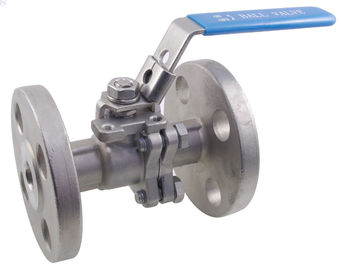

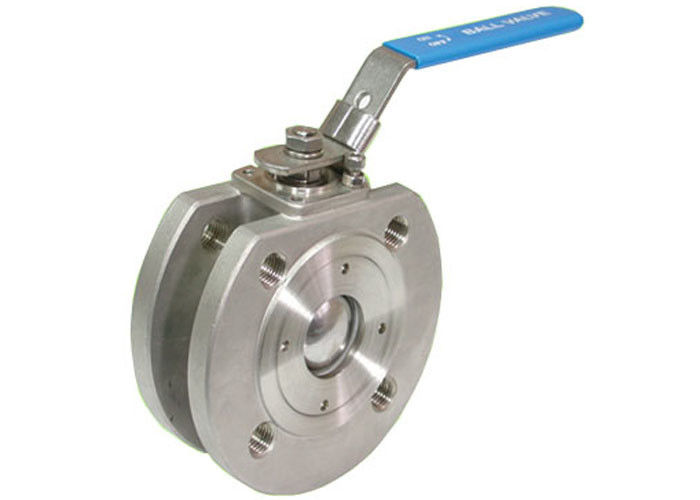

1 pc wafer flanged ball valve , 2 pc ball valve Stainless Steel Material
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Stainless Steel | Type: | CF8M / CF8 |
|---|---|---|---|
| Size: | 1/4"-4" | Sealing: | PTFE |
| OEM Service: | Available | Samples: | Free Samples Are Available |
| Operation Type: | Manual Lever/ Gear | Connection Type: | Flange,threaded,socket |
| Package: | Polywood Box/ Pallet | ||
| High Light: | wafer flanged ball valve,standard ball valve |
||
1 pc wafer flanged ball valve , 2 pc ball valve Stainless Steel Material
Specification:
- Design standard: ASME B16.34.
- Body material: F316.
- Nominal diameter: 2".
- Pressure: CL150.
- End connection: WAFER.
- Face to face: ASME B16.10.
- Working temperature: -196℃~+600℃.
- Mode of operation: Lever.
- Test and inspection: API 598.
Key Features:
- Reliable sealing performance and small torque;
- Full bore and reduced bore;
- Low emission packing;
- Fire safe, anti-static and anti-blowout stem design;
- Optional locking device;
- Optional ISO 5211 top flange.
