1" inch 304 / 316 Stainless Steel Ball Valve , Astm, Ansi / Jis Standard Ball Valve

China 1" inch 304 / 316 Stainless Steel Ball Valve , Astm, Ansi / Jis Standard Ball Valve supplier
1" inch 304 / 316 Stainless Steel Ball Valve , Astm, Ansi / Jis Standard Ball Valve supplier 1" inch 304 / 316 Stainless Steel Ball Valve , Astm, Ansi / Jis Standard Ball Valve supplier

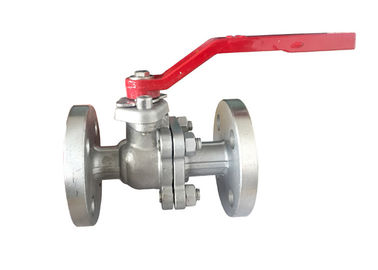

Large Image :  1" inch 304 / 316 Stainless Steel Ball Valve , Astm, Ansi / Jis Standard Ball Valve

Product Details:

Certification: ISO9001 & CE
Model Number: YH-2PFBV

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: USD 31.22-32.44 dollars
Packaging Details: cartoon or wooden box
Delivery Time: 40 days
Payment Terms: Western Union, , T/T
Supply Ability: 20 tons per month
Contact Now
Detailed Product Description
Standard: ASTM, JIS, ANSI ETC. Certificate: CE&ISO 9001
Handle Color: Blue/Red Working Pressure: 6.9 Mpa
Connection Type: Butt Welding Body Material: Stainless Steel 316/304
Media: Water Oil Gas
High Light:

wafer flanged ball valve

,

standard ball valve

1" inch 304 / 316 Stainless Steel Ball Valve , Astm, Ansi / Jis Standard Ball Valve



1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Flanged
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Flange type IF, TH, PL,WN,SO,SW,PJ/SE,PJ/RJ,BL
8 Bore type REDUCED



Material and specification

Item ITEM Material
1 BODY 1.4408/1.4308
2 CAP 1.4408/1.4308
3 BALL 1.4408/1.4308
4 STEM 316
5 BALL SEAT PTFE
6

STEM PACKING

 PTFE
7 STEM PACKING PTFE
8 STEM RING 304
9 HANDLE 304
10 NUT 304
11 COVER PLASTIC
12 BODY GASKET PTFE
13 BOLT 304
14 NUT 304


1" inch 304 / 316 Stainless Steel Ball Valve , Astm, Ansi / Jis Standard Ball Valve



SIZE A B D E C F H k T G M N
1/2" 15 11 80 160 115 45 65 95 16 2 14 4
3/4" 20 11 90 160 120 58 75 105 18 2 14 4
1" 25 14 95 160 125 68 85 115 18 2 14 4
1-1/4" 32 14 105 160 130 78 100 140 18 2 18 4
1-1/2" 38 17 110 220 140 88 110 150 18 3 18 4
2" 50 17 118 220 150 102 125 185 18 3 18 8
2-1/2" 65 17 136 220 170 122 145 185 18 3 18 8
3" 76 22 158 320 180 138 160 200 20 3 18 8
4" 94 22 178 320 190 158 180 220 20 3 18 8



1" inch 304 / 316 Stainless Steel Ball Valve , Astm, Ansi / Jis Standard Ball Valve

1" inch 304 / 316 Stainless Steel Ball Valve , Astm, Ansi / Jis Standard Ball Valve







Tag:

wafer flanged ball valve,

standard ball valve
