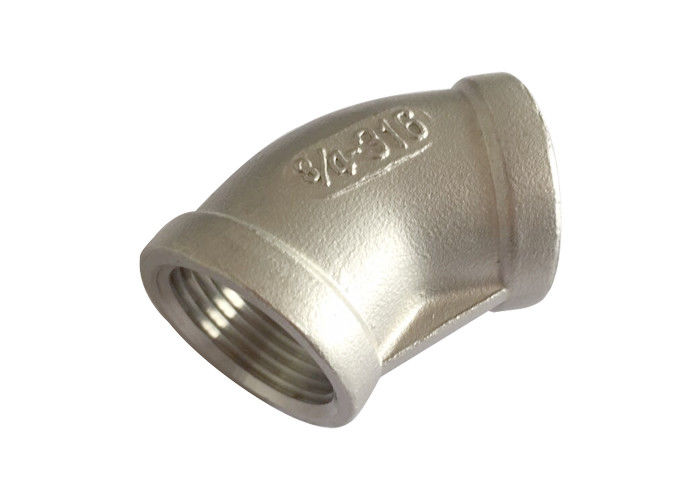

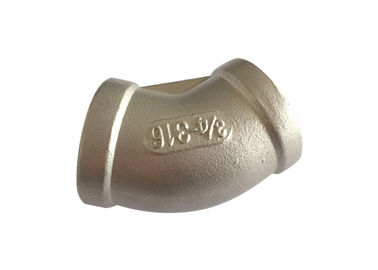

150 LB Stainless Steel Pipe Fitting Thread Connection 45 Degree Elbow
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Connection: | Thread | Thread Type: | BSP, NPT, BSPT |
|---|---|---|---|
| Working Temperature: | 25-180 Degree | Working Pressure: | 2 MPa |
| Sturcture Type: | 45 Degree Ff Elbow | Standard: | ASTM, JIS, ANSI Etc. |
| Size: | 1/4"-4" | ||
| High Light: | threaded pipe fittings,stainless steel union |
||
3/4" stainless steel material 304 316 bsp bspt npt FF threaded 45 degree elbow
Competitive Advantages:
1. OEM/ODM is applicable
2. Offer free sample for testing
3. 100% test before delivery
4. We are manufacturer, not trading company, so our price is very competitive & reasonable to win the market.
5. We pay much attention to technology renovation, process improvement, structure optimization and quality improvement at our ball valve.
6. We have excellent after-sales service system, providing timely and optimal service, which help you to win the market.
7. As a manufacturer, we have the absolutely advantage to control the quality & delivery.
8. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.
9. We got our own casting moulds for each dimension, the product is stable for the size.
| Product Name: | threaded round 45 degree stainless steel elbow |
| Material | ASTM- A351-CF8M (SS316) , CF8 (SS304) |
| Type | round shape 45 deg |
| Quality | 100% leakage tested |
| Size | 1/8" - 4" |
| Head Shape: | Round |
| End Connetion: | Female / Female Threaded |
| Thread Standard: | BSPP, BSPT, NPT, DIN2999, ISO228 etc. |
| Surface Treatment: | No |
| Working Pressure: | Class 150 |
| Suitable Medium: | Water, Oil, Gas, Nitric Acid, Acetic Acid |
| Applicable Temperature: | -20 -- 180 Degree C |
| Certificate: | CE; ISO9001 |
| Package | Inner Carton, then pack with plastic film and pallet. |
Material: 304, 316 or customized.
Thread: BSP, BSPT or NPT.
Tolerance: ±1 mm.
| size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| A45° | 19.0 | 21.0 | 23.0 | 25.0 | 30.0 | 32.0 | 33.0 | 36.0 | 44.0 | 50.0 | 54.0 | 58.5 |
| B45° | 15.9 | 19.8 | 23.0 | 27.0 | 32.0 | 42.0 | 49.0 | 57.0 |
69.0 |
85.0 | 98.5 | 124.0 |
The difference between the bsp, bspt and npt thread type are as follows.
|
|
