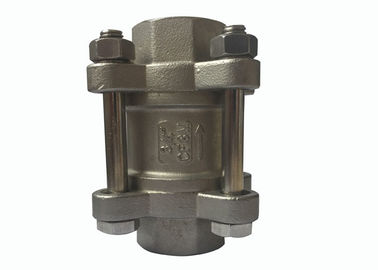

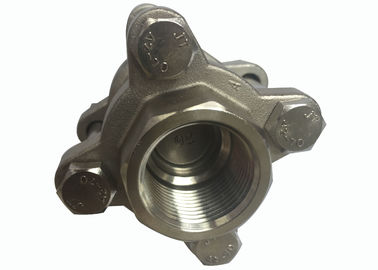

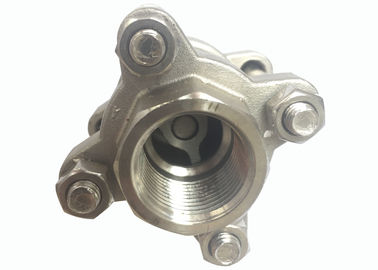

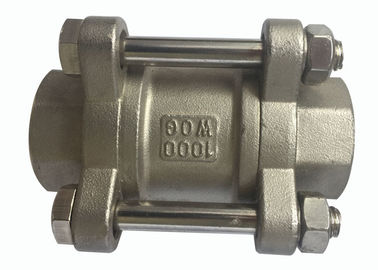

CF8M 3PC Single Flow Check Valve Stainless Steel Vertical Type

China CF8M 3PC Single Flow Check Valve Stainless Steel Vertical Type supplier
CF8M 3PC Single Flow Check Valve Stainless Steel Vertical Type supplier CF8M 3PC Single Flow Check Valve Stainless Steel Vertical Type supplier CF8M 3PC Single Flow Check Valve Stainless Steel Vertical Type supplier CF8M 3PC Single Flow Check Valve Stainless Steel Vertical Type supplier

Large Image :  CF8M 3PC Single Flow Check Valve Stainless Steel Vertical Type

Product Details:

Place of Origin: CHINA
Brand Name: YuanHeng
Certification: CE, ISO9001:2008
Model Number: YH-C#PC-FF

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: USD4.2-USD24
Packaging Details: Neutral Carton Box
Delivery Time: 35 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50 tons/month
Contact Now
Detailed Product Description
Type: Vertical Check Valve Flow Direction: Single Flow
Material: Stainless Steel CF8, CF8M Structure: Spring Loaded
Application: Pipe Line Pressure: 1000PSI/6.3Mpa

CF8M 3PC Single Flow Check Valve Stainless Steel Vertical Type





Introduction of check valve



Check valve is to rely on the flow of the media itself and automatically open and close the valve flap, used to prevent the media back flow of the valve, also known as check valve, counterflow valve, and back pressure valve. Check valve is an automatic valve, its main function is to prevent the media back, to prevent the pump and drive motor reverse, and the container media release.

classification

Opening and closing by the media flow and power to open or close on their own to prevent the media back valve called the check valve. Check valve is automatic valve type, mainly used for medium one-way flow of the pipeline, only to allow the media to flow in one direction to prevent accidents.

Check valve by structure, can be divided into lift check valve, swing check valve and butterfly check valve three types:

  • Lift check valve is divided into vertical and horizontal two.
  • Swing check valve is divided into single-valve type, double-and multi-valve type three.
  • Butterfly check valve for the straight-through.



Drawing and Specification Data



CF8M 3PC Single Flow Check Valve Stainless Steel Vertical Type

SIZE 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
B 8 10 15 20 25 32 40 50 65 80 100
C 56 56 65 70 78 86 102 118 145 158 185
L 61 61 69 74 80 95 101 114 136 146 174
