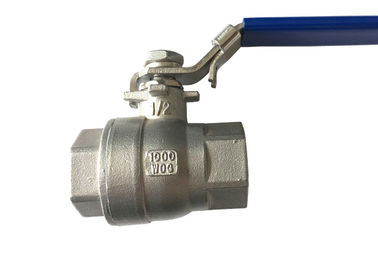

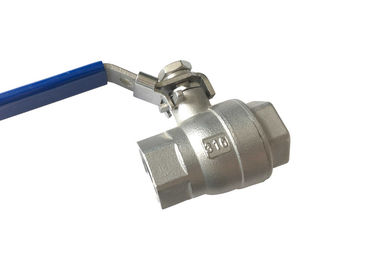

1/2“ Full Welded Ball Valve , Socket Weld Ball Valve Blue / Red Handle Color

I'm Online Chat Now

1/2“ Full Welded Ball Valve , Socket Weld Ball Valve Blue / Red Handle Color

China 1/2“ Full Welded Ball Valve , Socket Weld Ball Valve Blue / Red Handle Color supplier
1/2“ Full Welded Ball Valve , Socket Weld Ball Valve Blue / Red Handle Color supplier 1/2“ Full Welded Ball Valve , Socket Weld Ball Valve Blue / Red Handle Color supplier

Large Image :  1/2“ Full Welded Ball Valve , Socket Weld Ball Valve Blue / Red Handle Color

Product Details:

Certification: ISO9001 & CE
Model Number: 2PBV

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: USD 3.3 dollars
Packaging Details: cartoon or wooden box
Delivery Time: 40 days
Payment Terms: Western Union, , T/T
Supply Ability: 20 tons per month
Contact Now
Detailed Product Description
Body Material: Stainless Steel 316/304 Media: Water Oil Gas
Handle Color: Blue/Red Working Pressure: 6.9 Mpa
Certificate: CE Connection Type: Thread
Thread Type: NPT, BSPT, BSPP
High Light:

butt weld ball valve

,

ss ball valve

1/2“ stainless steel 304 or 316 light duty bspp, bspt, npt threaded 2 pc ball valve

1, The main material we produce is 304 or 316.

2, The working pressure is 1000 PSI, I.E. 6.3 Mpa.

3, Working temperature: -20-240℃.

4, Connetion ways: Butt welding, Thread, Socket welding, etc.

5, We got ISO 2008: 9001 and CE certificates.

6, The size we can make is from 1/4" to 4"

7, Thread type: BSPP, BSPT, NPT, etc.

8, Bore type: Full bore.


Material and specification

Item ITEM Material
1 BODY CF8M
2 BALL SEAT R-PTFE
3 BALL 316
4 CAP CF8M
5 STEM  316
6

THRUST WAHSER

PTFE
7 STEM PACKING PTFE
8 GLAND NUT 304
9 HANDLE 304
10 NUT 304
11 LOCK DEVIECE 304
12 HANDLE COVER PLASTIC



Features of 2 pc ball valve:

1, It is produced by precised casting, the tolerance for dimension is very strcit.

2, There is light duty type and heavy duty type, which got some differences between the weight,

    length, etc. The pressure they can hold is the same.

3, It can be used for connection of plumbings with same thread. Such as BSP, BSPT, NPT.

4, It can convey water, oil, gas, within limited pressure. I.E. 1000 PSI/6.3 Mpa.

5, The handle cover of the ball valve can be customized. We can print your logo onto it, if needed.

    However, the order quantity shall reach certain amount. Or, the printing cost shall be covered

    separately.

6. We got our own moulds for the size from 1/4"-4", which means they got certain settled diemensions.

    If you need to change some sizes, we can make new mould for production according to your needs.


1/2“ Full Welded Ball Valve , Socket Weld Ball Valve Blue / Red Handle Color





DN L H W
IN MM
1/4" 11.6 53 46 91.5
3/8" 12.7 53 46 91.5
1/2" 15 60 52 101.5
3/4" 20 70 57.5 116.5
1" 25 82 68 141.5
1-1/4" 32 97 73 141.5
1-1/2" 37 103 83 166.5
2" 49 122 92 166.5
2-1/2" 65 154 125 250
3" 80 190 150 250


1/2“ Full Welded Ball Valve , Socket Weld Ball Valve Blue / Red Handle Color

1/2“ Full Welded Ball Valve , Socket Weld Ball Valve Blue / Red Handle Color
